S8S

완전방수기능의 S8S모델은 물속에서도 고해상도의 이미지를 선명하고 밝게 표현해줍니다. 스타디움의 페리메터 디스플레이와 옥외용 광고 용도로 설계되었습니다. 다양한 픽셀피치의 제품으로 구성되었으며, 밝은 태양광 아래에서도 항상 완벽한 이미지를 만들어줍니다.

16231939500

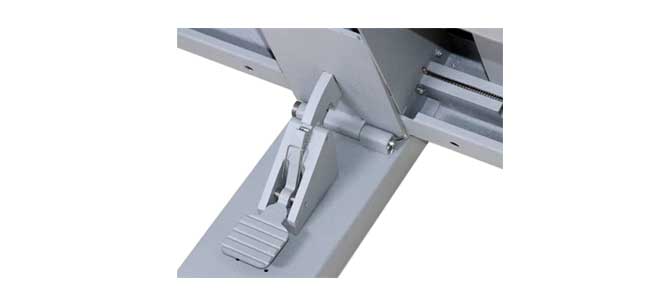

Unique bracket support design, high stability
Total of 6 adjustable locations, covering rotational angle 24 degrees in all. Adjusting the direction of panel surface flexibly ensures a best viewing angle.



16231999818

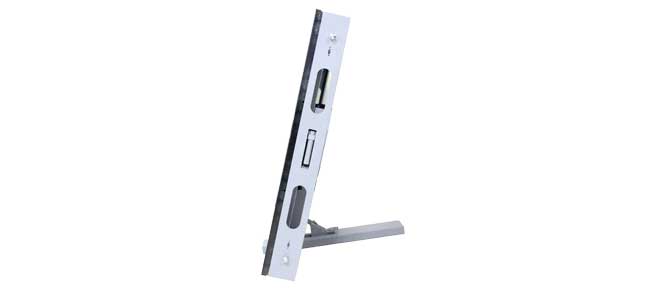

Super lightweight and thin cabinet structure
Just 30-35kg/㎡, 27mm, 40% lighter, 80% thinner than the conventional cabinet, portable manual handling, which helps customers to get rid of the heavy work on installation and transportation, saving unnecessary costs.



16231949805

High reliability
With front and rear waterproof design, it’s completely capable to sink into water directly, excellent performance for stadium perimeter applications separately.



16231910360

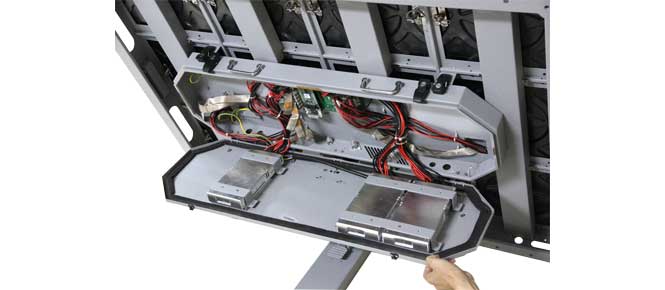

High efficient front & rear maintenance
Module front maintenance, receiving card and power supply only rear maintenance; free and easy operation, saving time and cost.



1623197072

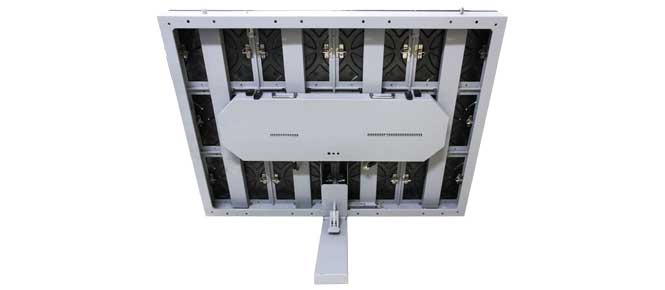

Good performance with stability and healthy operation
Low heat emitting ensure the uniformity of shining surface; panel fan-less design generates zero noisy; gapless split joint help to see a completed smooth video interface

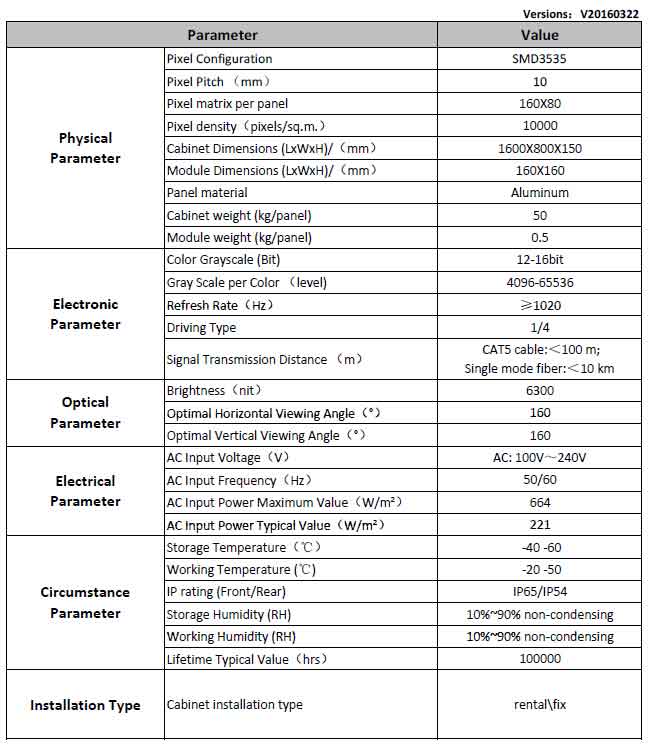

Specification

20160324130842_57216

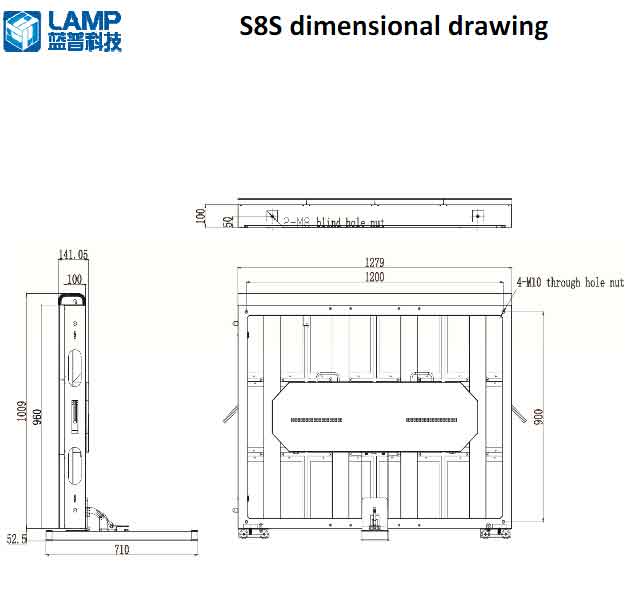

20160324130305_19261
